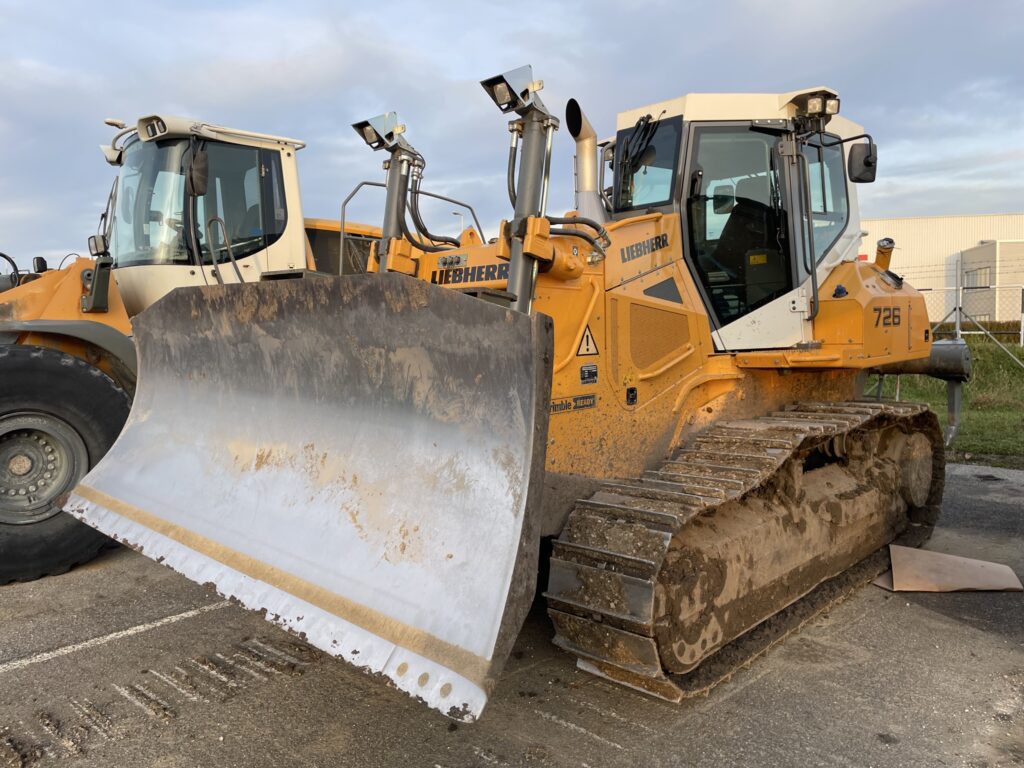

Liebherr PR726 Medium Dozer
Information
Additional information
| Make | |
|---|---|
| Model | PR726 |
| Weight | 21t |
Equipment Overview
The Liebherr PR726 is a medium dozer built for heavy pushing and precision grading, part of Liebherr’s Generation 8 crawler dozer range for the Australian market. It has 125 kW (170 hp) of rated net power, an operating weight of 17,658 kg, and a 3.33 m³ six-way blade in standard XL configuration, suited to civil construction, landfill, and site development work where grading precision and low ground pressure matter.
Power comes from the Liebherr D 934 A7 engine, a 4-cylinder, 7.0-litre unit that meets Stage V/EPA Tier 4f emission standards. An infinitely variable hydrostatic travel drive gives each track its own independent motor, delivering continuous traction and speeds up to 11 km/h, while hydrostatic steering and a wear-free multi-disc parking brake round out the drivetrain. A three-shank ripper is available as a rear attachment for scarifying compacted ground.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Liebherr D 934 A7, 7.0 L, 4-cylinder in-line, turbocharged, air-to-air intercooled |
| Power Output | 125 kW / 170 hp (rated net, ISO 9249 @ 1,900 rpm) |
| Emission Standard | Stage V / EPA-CARB Tier 4f |
| Transmission | Infinitely variable hydrostatic travel drive, independent drive per track |
| Drive Type | Hydrostatic steering; wear-free multi-disc parking brake |
| Operating Weight | 17,658 kg (XL, 610 mm shoes, 6-way blade) |
| Max Travel Speed | 11.0 km/h forward and reverse (continuously variable) |
| Blade Capacity | 3.33 m³ (6-way blade, XL, standard) |
| Blade Width | 3,302 mm (6-way blade, XL, straight) |
| Ground Pressure | 0.41 kg/cm² / 40.2 kPa (XL, 610 mm shoes) |
| ROPS / FOPS | EN ISO 3471 / EN ISO 3449 |
Dimensions
| Dimension | Value |
|---|---|
| Overall Length (with blade, straight) | 5,542 mm |
| Width (over tracks, 610 mm shoes) | 2,500 mm |
| Height (over cab) | 3,210 mm |
| Track Gauge | 1,890 mm |
| Ground Clearance | 429 mm |
Typical Applications
- Civil construction earthmoving and site development
- Landfill and waste site management
- Stockpile management and material handling
- Fine grading with Liebherr Operator Assistance Systems
- Road and infrastructure subgrade construction
