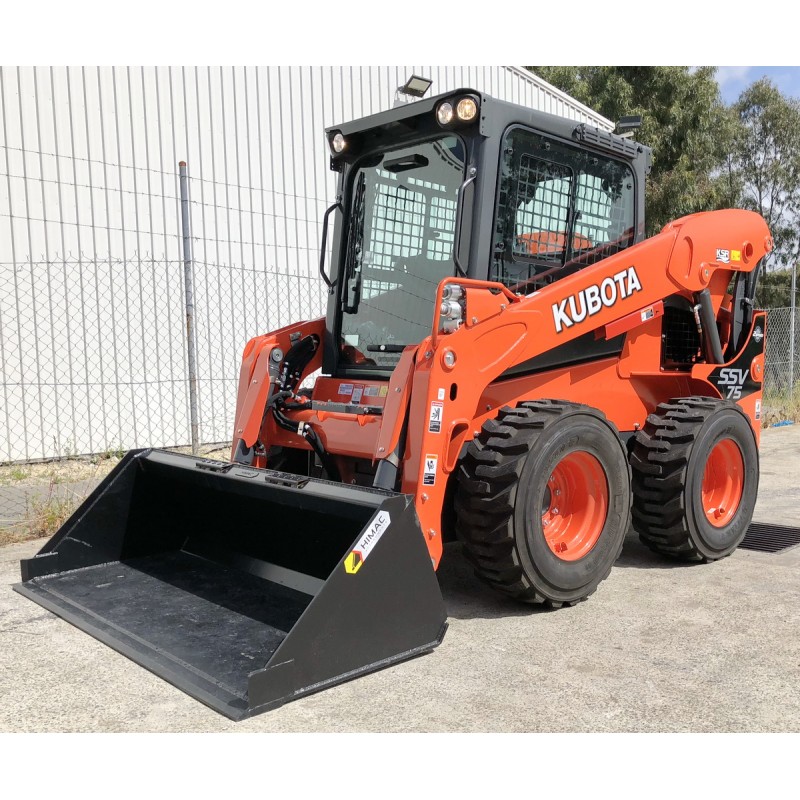

Kubota SSV75 Skid Steer Loader
Information
Additional information
| Make | |
|---|---|
| Model | SSV75 |
| Weight | 3.7 t |
| Capacity | 1.2 t |
| Power | 74.3 hp |
Equipment Overview
The Kubota SSV75 is a skid steer loader built for loading, grading, and hydraulic attachment work on commercial jobsites, the larger of Kubota’s two current SSV-Series models. It delivers 74.3 hp and a 1,220 kg rated operating capacity, with a vertical-lift boom design providing greater lifting capacity and improved visibility for construction, landscaping, and agricultural applications.
Power comes from a Kubota V3307-CR-TE4 diesel engine, EPA Tier 4 Final certified, driving a hydrostatic transmission through two variable-displacement piston pumps with a two-speed shift from 7 mph to 11 mph at the flick of a switch. The cab offers the widest entrance in the market with a roll-up front door for easy access regardless of attachment position, and high-flow auxiliary hydraulics with a 14-pin connector and programmable flow control support demanding attachments.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Kubota V3307-CR-TE4, turbo diesel |
| Power Output | 74.3 hp (55.4 kW) gross |
| Max Torque | NA |
| Emission Standard | EPA Tier 4 Final |
| Transmission | Hydrostatic, two-speed |
| Drive Type | 4-wheel skid steer |
| Operating Weight | 3,700 kg (open ROPS); 3,820 kg (enclosed cab with A/C) |
| Rated Operating Capacity (50%) | 1,220 kg |
| Tipping Load | 2,440 kg |
| Auxiliary Hydraulic Flow | 79.1 L/min standard |
| Max Travel Speed | 18.3 km/h (two-speed) |
Dimensions
| Dimension | Value |
|---|---|
| Length | 2,920 mm (without bucket) |
| Width | 1,823 mm |
| Height | 2,065 mm |
| Wheelbase | NA |
| Turning Radius | NA |
Typical Applications
- Construction and general contracting
- Landscaping and grading
- Agricultural material handling
- Attachment-driven site work (pallet forks, bale spears, grapples, augers)
