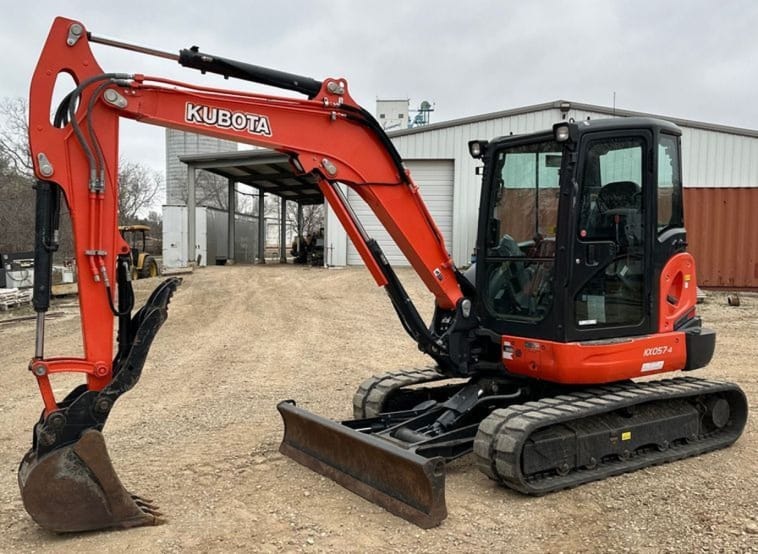

Kubota KX057 Mini Excavator

Information

Additional information

Make	Kubota
Model	KX057, KX057-4
Weight	5.6 t

Equipment Overview

The Kubota KX057 is a 5.6-tonne mini excavator offering impressive performance and efficiency for its size, with exceptional bucket digging force, excellent arm reach and a well-matched arm and bucket that make even tough digging work faster and more efficient. A redesigned, back-lighted keypad places all main switches on the right side for easier access, and side-hood mounted radiator, oil cooler and A/C condenser with a tilting structure make the cooling system simpler to clean and maintain.

Power comes from a Kubota direct-injection diesel engine producing around 47.6 hp (35.5 kW), designed to maximise digging and lifting performance while minimising noise and vibration. Two auxiliary hydraulic circuits come as standard, along with precise oil flow control, giving the machine real versatility to work with a variety of attachments. Kubota’s industry-leading anti-theft system protects the machine, with only programmed keys able to start the engine and an alarm triggered by unprogrammed attempts.

Technical Specifications

Specification	Value
Engine	Kubota diesel, direct injection
Power Output	47.6 hp (35.5 kW)
Max Torque	NA
Emission Standard	Tier 4 Final
Transmission	Hydrostatic, 2 auxiliary hydraulic circuits
Drive Type	Rubber track
Operating Weight	5,600 kg
Digging Depth	3,880 mm
Bucket Capacity	0.17 m³
Reach	5,580 mm
