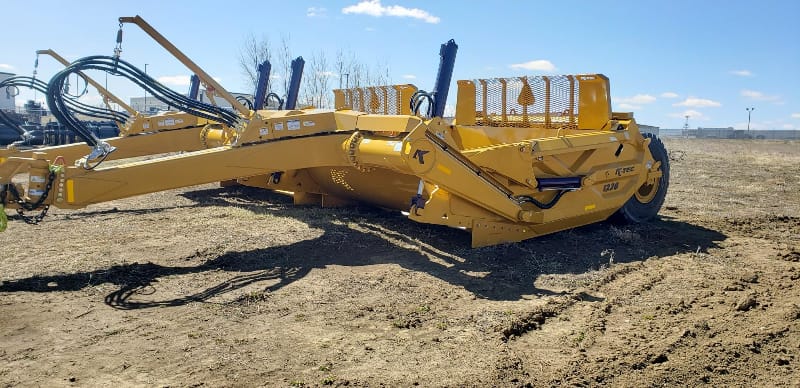

K-Tec 1228 Pull-Type Scraper
Information
Additional information
| Make | |
|---|---|
| Model | 1228 |
| Weight | 15t |
Equipment Overview
The K-Tec 1228 is a pull-type scraper designed to be towed by a separate tractor or articulated dump truck rather than carrying its own power unit, part of K-Tec’s Direct Mount range alongside the larger 1230, 1233 and 1236 models. It has a heaped capacity of 21.4 cubic metres and a shipping weight of around 13.4 tonnes, suited to broadacre land-levelling, farm dam construction, and low-ground-pressure earthworks in sandy or soft soil where a lightweight, self-loading scraper outperforms a heavier motor scraper.
The 1228 has no onboard engine or transmission; its bowl, gate and ejector cylinders run off the towing tractor’s hydraulics through 3/4-inch quick-connect tips, and it needs a minimum of 300 hp (220 kW) to pull. The solid-welded, rigid frame carries its load on a single rear axle fitted with 23.5R25 radial tyres as standard, splitting roughly a quarter of the load onto the tractor hitch and three-quarters onto the scraper’s own axle.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | None (towed implement; requires host tractor) |
| Power Output | 300 hp (220 kW) minimum tractor requirement |
| Max Torque | NA |
| Emission Standard | NA |
| Transmission | NA |
| Drive Type | Towed / pull-type (non-self-propelled) |
| Operating Weight (Shipping) | 13,404 kg |
| Max Loading Rating | 30,844 kg |
| Scraper Capacity – Heaped | 21.4 m³ |
| Scraper Capacity – Struck | 14.1 m³ |
| Cutting Width | 3.66 m |
| Standard Tyres | 23.5R25 radial (4) |
| Weight Distribution | 24% hitch / 76% scraper axle |
Dimensions
| Dimension | Value |
|---|---|
| Length | 11,150 mm |
| Width | 4,270 mm |
| Height | 2,690 mm |
| Wheelbase | NA |
| Hitch Pin to Rear Axle | 9.14 m |
| Turning Radius | 7.92 m |
Typical Applications
- Broadacre land levelling and farm earthworks
- Low-ground-pressure work in sandy or soft soil
- Farm dam construction
- Rural subdivision and building pad preparation
- Cost-effective bulk earthmoving for contractors already running high-horsepower tractors
