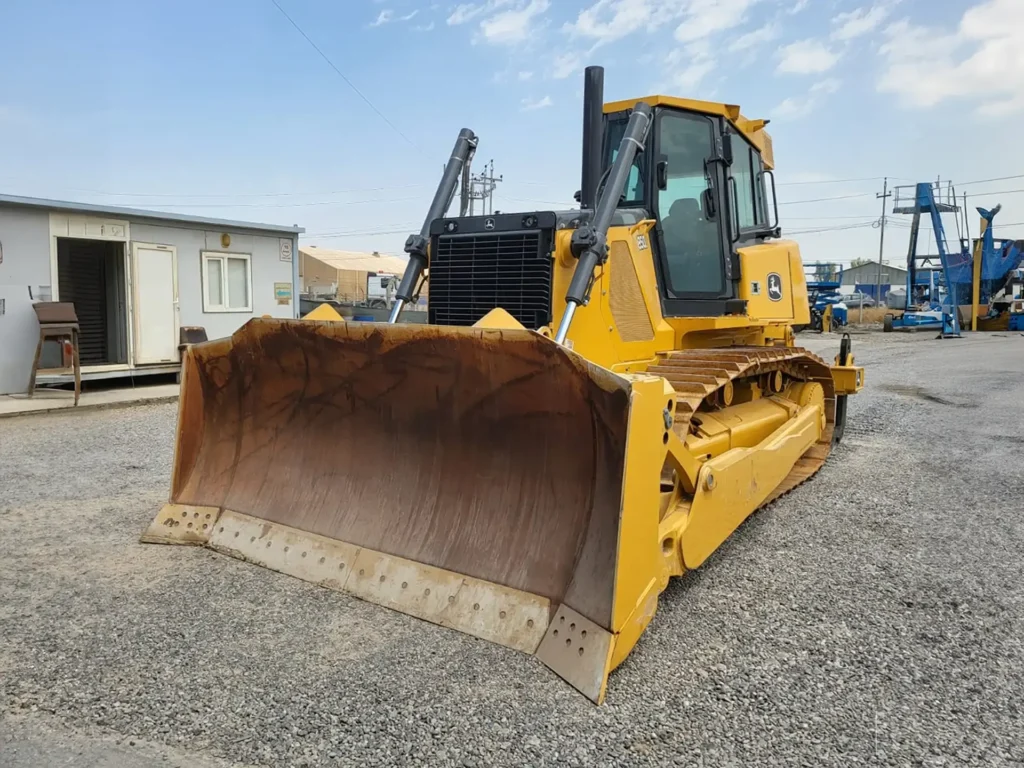

John Deere 850 Medium Dozer

Information

Additional information

Make	John Deere
Model	850, 850J
Weight	22t

Equipment Overview

The John Deere 850 is a medium dozer built for site development, road building, and mass excavation, part of Deere’s L-Series crawler dozer range and the current-generation dozer sold in the Australian market. It has 168 kW (225 hp) of net power and an operating weight of 21,581–23,299 kg depending on track and blade configuration, suited to heavy civil earthworks and grading, with a power-angle-tilt blade available up to 172 in (4,359 mm) wide — the widest in its class.

Power comes from the John Deere PowerTech PSS 6090 9.0-litre engine, which meets EPA Final Tier 4/EU Stage IV emission standards. A dual-path hydrostatic transmission gives each track its own independent pump and motor, with single-lever steering and counter-rotation for full-power turns, and Eco mode automatically adjusts engine power and transmission settings to load. A rear-mounted, three-shank parallelogram ripper with hydraulic pitch adjustment is available for scarifying compacted ground.

Technical Specifications

Specification	Value
Engine	John Deere PowerTech PSS 6090, 9.0 L, turbocharged and air-to-air aftercooled
Power Output	168 kW / 225 hp (SAE net, @ 1,700 rpm)
Max Torque	1,126 Nm (831 lb-ft) @ 1,500 rpm
Emission Standard	EPA Final Tier 4 / EU Stage IV
Transmission	Automatic, dual-path hydrostatic (HST) drive, load-sensing
Drive Type	Independent hydrostatic pump and motor per track, single-lever steering
Operating Weight	21,581–23,299 kg (across XLT/WLT/LGP track and PAT/OSD blade configurations); base XLT PAT configuration 22,126 kg
Max Travel Speed	11.0 km/h (operator-selectable maximum; 9.7 km/h standard forward/reverse)
Blade Capacity	3.9 m³ (SAE, PAT blade, XLT)
Blade Width	Up to 4,359 mm (172 in) on the PAT blade
Ground Pressure	49.1 kPa (XLT, PAT)
ROPS	ISO 3471:2008
