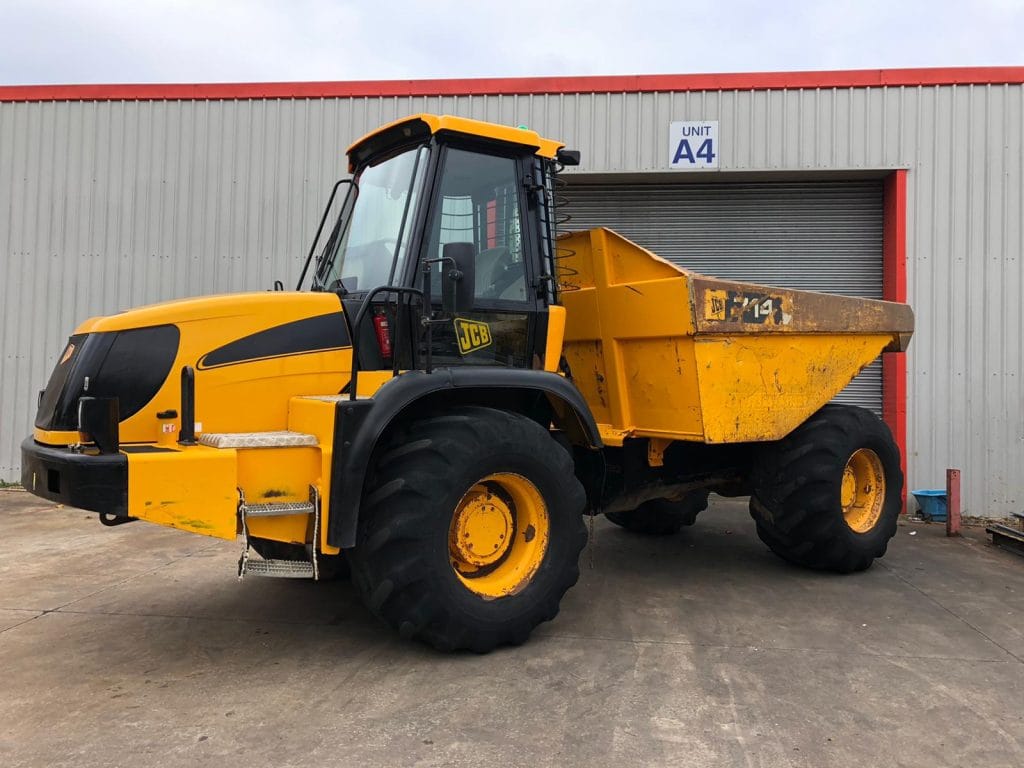

JCB 714 Site Dumper
Information
Additional information
| Make | |
|---|---|
| Model | 714 |
| Weight | 10 t |
| Capacity | 13 t |
Equipment Overview
The JCB 714 is an articulated dump truck built for off-road hauling across broken, uneven ground, the smallest model in JCB’s articulated truck range below the 718 and 722. It carries a 13-tonne rated payload and a 7.35 m³ heaped body, producing 107 kW of power, suited to construction, quarrying, and civil earthworks sites too tight or rough for a full-size mining-class truck to access.
Power comes from a Cummins six-cylinder diesel engine, turbocharged and charge-cooled, rated at 107 kW (143 hp). A remote-mount smoothshift transmission with integral torque converter shifts through six forward and three reverse gears, available in manual or automatic selection, and the operator can switch between two- and four-wheel drive electrically to suit the ground conditions. Pad-mounted axles with a limited-slip differential help put that power down on soft or slippery terrain.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Cummins, 6-cylinder turbo-diesel with charge cooler |
| Power Output | 107 kW (143 hp) |
| Max Torque | NA |
| Emission Standard | NA |
| Transmission | Smoothshift, 6 forward / 3 reverse, torque converter |
| Drive Type | Electrically selectable 2WD / 4WD |
| Operating Weight (Unladen) | 10,140 kg |
| Gross Weight (Loaded) | 23,140 kg |
| Rated Payload | 13,000 kg (13 tonnes) |
| Body Capacity (Heaped) | 7.35 m³ |
Dimensions
| Dimension | Value |
|---|---|
| Overall Length | 6,784 mm |
| Overall Width | 2,500 mm |
| Overall Height | 3,425 mm |
| Turning Radius (SAE) | NA |
Typical Applications
- Construction site bulk material haulage
- Quarry face-to-stockpile hauling
- Civil earthworks on restricted-access sites
- Rural and forestry haul roads with soft or uneven ground
