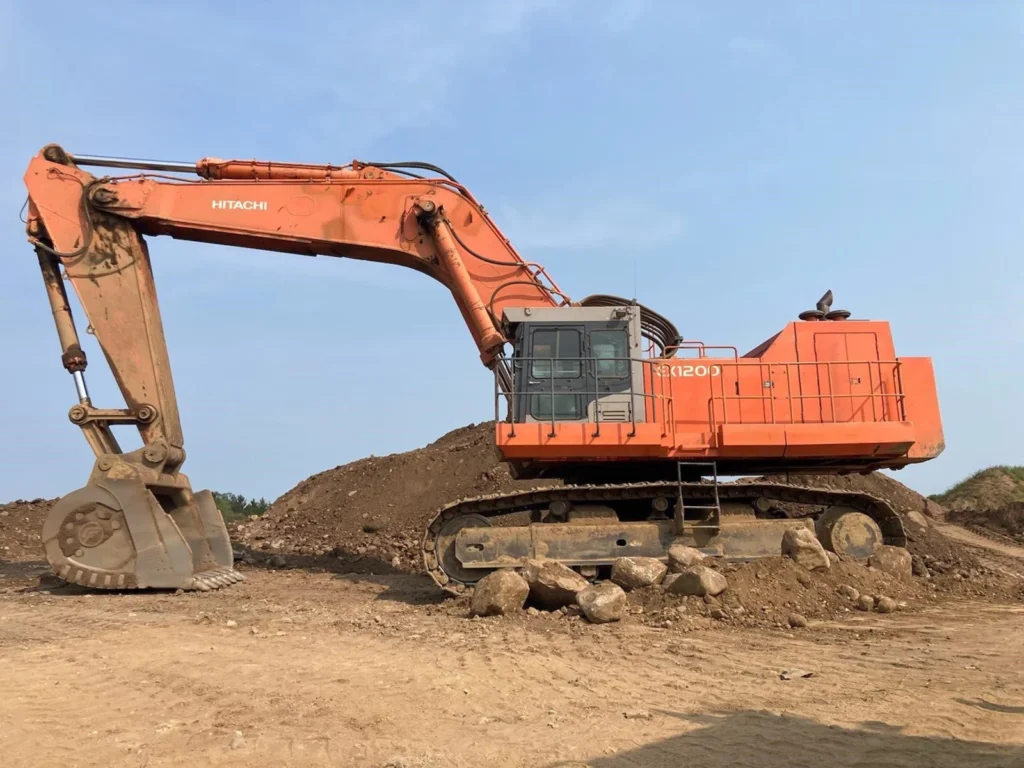

Hitachi EX1200 Mining Excavator
Information
Additional information
| Make | |
|---|---|
| Model | EX1200, EX1200-6 |
| Weight | 111t |
Equipment Overview
The Hitachi EX1200 is a 111-tonne mining excavator from Hitachi’s EX-7 mining series, engineered to strike a balance between productivity and reliability across mining, quarry and heavy civil applications. A front attachment design built around a welded, full-box section boom and arm evenly distributes stress and eases maintenance, while a unique modular design with spacious passageways and work platforms gives clear access for daily upkeep and major component work.
Power comes from a Cummins engine producing 567 kW (760 hp) at 1,800 rpm, giving the machine the muscle for continuous heavy digging and loading. Backhoe bucket capacity is 5.2 m³, with loading shovel configurations ranging from 5.9 to 7.5 m³. Improved pathways, handrails and a dual isolator switch as standard reflect Hitachi’s focus on safety, and the bucket digging profile covers a wide working area from below ground level to above cab height without needing repositioning.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Cummins diesel |
| Power Output | 567 kW (760 hp) @ 1,800 rpm |
| Max Torque | NA |
| Emission Standard | NA |
| Transmission | Hydrostatic, 2-speed travel |
| Drive Type | Steel track, 700 mm shoes |
| Operating Weight | 111,005 kg |
| Digging Depth | 8,710 mm |
| Bucket Capacity | 5.2 m³ to 7.5 m³ |
| Reach | 16,950 mm |
Dimensions
| Dimension | Value |
|---|---|
| Length | NA |
| Width | 5,000 mm |
| Height | 5,000 mm |
| Track Width | 700 mm |
| Tail Swing Radius | NA |
Typical Applications
- Mining and quarry mass excavation
- Heavy civil and infrastructure projects
- High-volume loading and material handling
- Continuous heavy-duty operation
