EquipmentDynapac CA602PD Padfoot Roller
Model
CA602PD

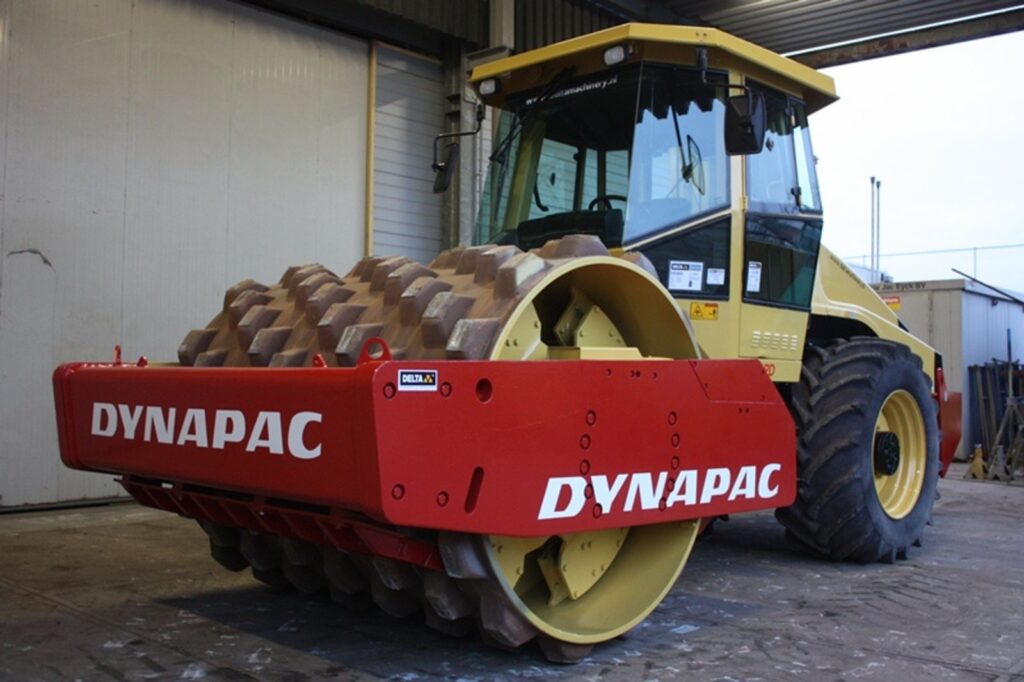

Dynapac CA602PD Padfoot Roller
Information
Additional information
| Make | |
|---|---|
| Model | CA602PD |
| Weight | 19 t |
Equipment Overview
The Dynapac CA602PD is a single drum padfoot roller built for heavy compaction of cohesive soils, with a 2,130 mm drum width fitted with 130 pads. It has an operating weight of 18,600 kg, suited to large-scale road construction, dam and embankment fill work.
Power comes from a Cummins QSB 6.7 T3 water-cooled turbo-diesel engine with an after cooler, producing 190 hp at 2,200 rpm. The vibratory system runs at 29 or 31 Hz with up to 317 kN of centrifugal force, and the roller carries a 320-litre fuel tank, reaching a top speed of 11 km/h.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Cummins QSB 6.7 T3, 6-cylinder water-cooled turbo-diesel |
| Power Output | 190 hp @ 2,200 rpm |
| Max Torque | NA |
| Emission Standard | US EPA Tier 3 |
| Transmission | NA |
| Drive Type | NA |
| Operating Weight | 18,600 kg |
| Drum Width | 2,130 mm |
| Number of Pad Feet | 130 |
| Exciter Frequency | 29 / 31 Hz |
| Centrifugal Force | Up to 317 kN |
Dimensions
| Dimension | Value |
|---|---|
| Length | 6,001 mm |
| Width | 2,131 mm |
| Height | 3,002 mm |
| Wheelbase | 2,993 mm |
| Turning Radius | NA |
Typical Applications
- Cohesive soil compaction on large-scale road construction
- Dam and large embankment fill
- Airport and railway foundation compaction
- Land reclamation projects
