EquipmentDynapac CA362PD Padfoot Roller
Model
CA362PD

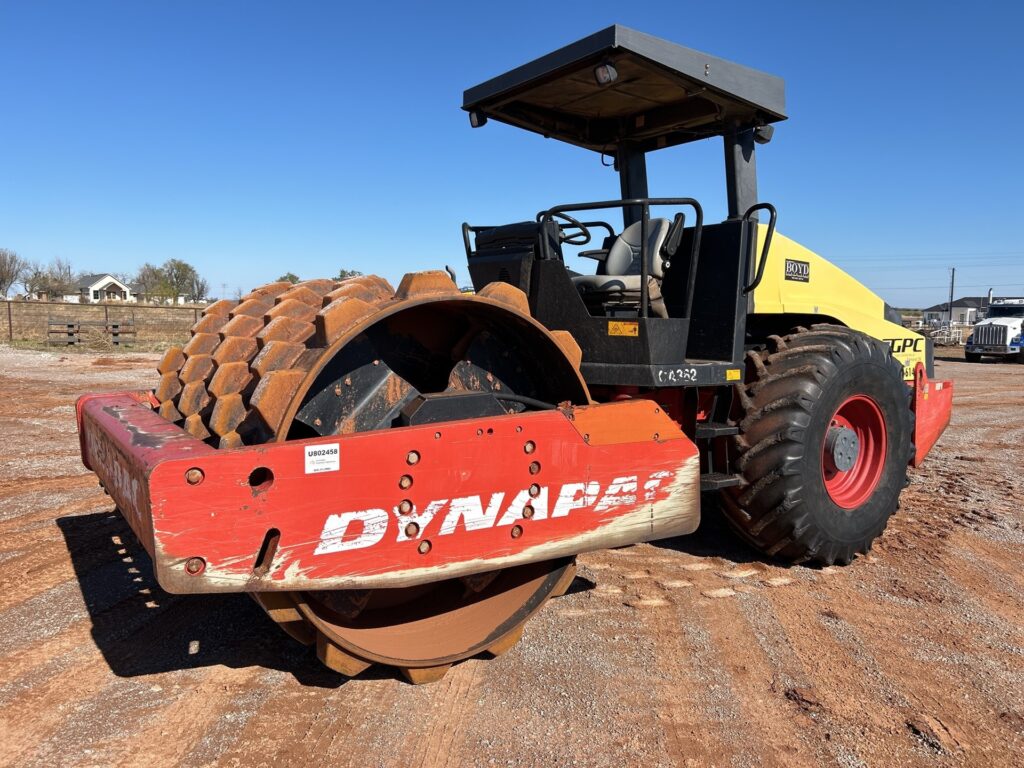

Dynapac CA362PD Padfoot Roller
Information
Additional information
| Make | |
|---|---|
| Model | CA362PD |
| Weight | 13 t |
Equipment Overview
The Dynapac CA362PD is a single drum padfoot roller built for compacting cohesive soils, with a 2,130 mm drum width fitted with 150 pads. It has an operating weight of 13,100 kg, suited to road construction, base and subbase compaction on medium-to-large sites.
Power comes from a Cummins QSB 6.7 T3 water-cooled turbo-diesel engine with an after cooler, producing 150 hp at 2,200 rpm. The vibratory system runs at 33 Hz with up to 300 kN of centrifugal force, and the roller carries a 320-litre fuel tank, reaching a top speed of 9 km/h.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Cummins QSB 6.7 T3, water-cooled turbo-diesel |
| Power Output | 150 hp @ 2,200 rpm |
| Max Torque | NA |
| Emission Standard | US EPA Tier 3 |
| Transmission | NA |
| Drive Type | NA |
| Operating Weight | 13,100 kg |
| Drum Width | 2,130 mm |
| Number of Pad Feet | 150 |
| Exciter Frequency | 33 Hz |
| Centrifugal Force | Up to 300 kN |
Dimensions
| Dimension | Value |
|---|---|
| Length | 5,761 mm |
| Width | 2,131 mm |
| Height | 2,996 mm |
| Wheelbase | NA |
| Turning Radius | NA |
Typical Applications
- Cohesive soil compaction on road construction sites
- Base and subbase compaction on medium-to-large projects
- Municipal and civil earthworks
- Embankment and fill compaction
