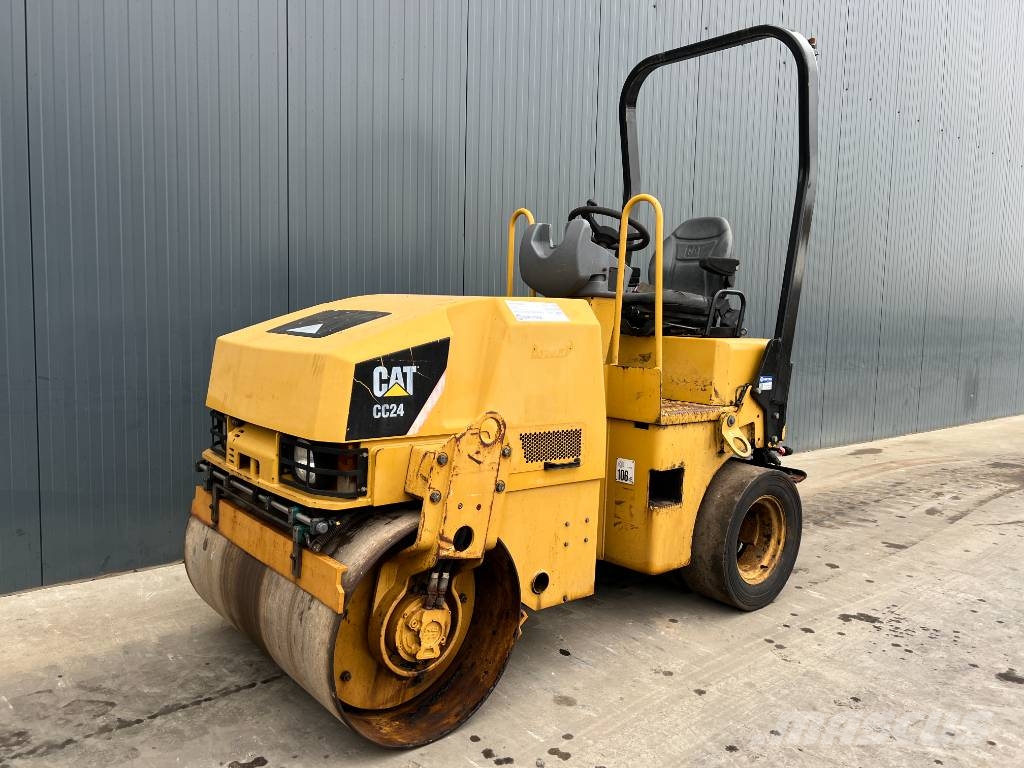

CAT CC24B Combination Roller
Information
Additional information
| Make | |
|---|---|
| Model | CC24B |
| Weight | 2.4 t |
Equipment Overview
The CAT CC24B is a combination roller built for asphalt compaction, pairing a 1,200 mm vibratory front drum with 4 rear pneumatic tyres for a kneading finish. It has an operating weight of 2,441 kg (up to 2,618 kg ballasted), suited to shoulders, small parking lots, lane additions and other compact paving jobs, either as a standalone roller or as a support unit behind larger production rollers.
Power comes from a Cat C1.5 turbo-diesel engine producing 27 kW (36.2 hp), meeting US EPA Tier 4 Final emissions. The front drum runs at up to 0.53 mm amplitude across three selectable frequencies (63/55/42 Hz) for different lift thicknesses, and a 50 mm drum offset helps the machine work tight against kerbs and edges. A 235-litre water tank keeps the spray system running for up to 10 hours between refills.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Cat C1.5, turbocharged diesel |
| Power Output | 27 kW (36.2 hp) |
| Max Torque | NA |
| Emission Standard | US EPA Tier 4 Final |
| Transmission | NA |
| Drive Type | Rear-wheel propel via 4 pneumatic tyres; front drum vibrates only |
| Operating Weight | 2,441 kg |
| Compaction Width | 1,200 mm |
| Ballast Range | 2,441 – 2,618 kg |
Dimensions
| Dimension | Value |
|---|---|
| Length | 2,575 mm |
| Width | 1,312 mm |
| Height | 2,700 mm |
| Wheelbase | 1,800 mm |
| Turning Radius | 2,475 mm (inside drum edge) |
Typical Applications
- Shoulder and edge compaction on road resurfacing projects
- Small parking lot and driveway asphalt paving
- Lane widening and addition work
- Support rolling behind larger production rollers on bigger asphalt jobs
- Patching and small-scale municipal asphalt repairs
