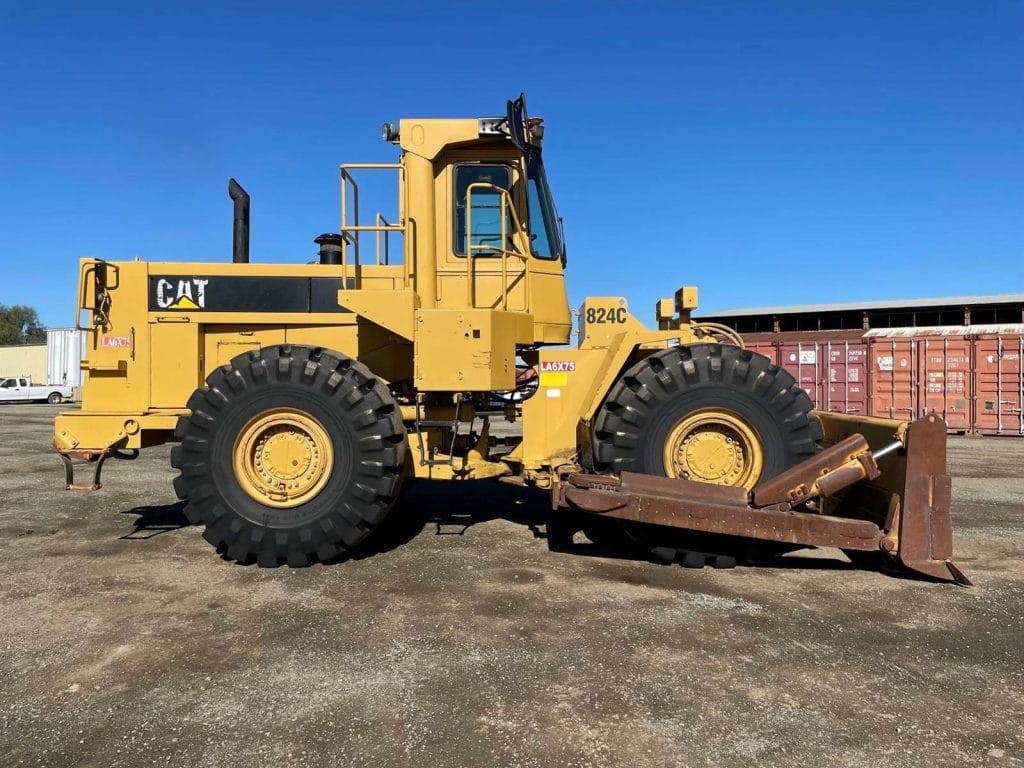

CAT 824 Wheel Dozer
Information
Additional information
| Make | |
|---|---|
| Model | 824 |
| Weight | 34 t |
Equipment Overview
The Cat 824 is a wheel dozer built to combine the pushing power of a track dozer with the mobility of a wheeled machine. It has 302 kW (405 hp) of net power, an operating weight of 34,004 kg with the standard straight blade fitted, and a 5.0 m³ blade capacity in that configuration, suited to surface mining cleanup, coal stockpiling, road maintenance, and reclamation work where speed between tasks matters.
Power comes from the Cat C15 engine, offered in a Tier 4 Final/EU Stage V/Korea Stage V/Japan 2014 rating or a Brazil MAR-1 rating equivalent to U.S. EPA Tier 3/EU Stage IIIA. A Cat planetary powershift transmission with Single Clutch Speed Shifting and a lock-up-clutch torque converter delivers smooth, efficient shifting across four forward and four reverse gears, and pilot-operated, load-sensing steering gives the articulated frame precise, responsive control. Multiple blade options are available, from the 5.0 m³ straight blade up to a 16.2 m³ coal blade.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Cat C15, 15.2 L, turbocharged |
| Power Output | 302 kW / 405 hp (net, SAE J1349:2011/ISO 9249:2007 @ 1,800 rpm) |
| Emission Standard | U.S. EPA Tier 4 Final / EU Stage V / Korea Stage V / Japan 2014 (a Brazil MAR-1 rating, equivalent to U.S. EPA Tier 3 / EU Stage IIIA, is also offered) |
| Transmission | Cat planetary powershift with Electronic Clutch Pressure Control (ECPC), Single Clutch Speed Shifting, 4F/4R, torque converter with lock-up clutch |
| Drive Type | Articulated frame, pilot-operated load-sensing steering, front fixed/rear oscillating (±11°) planetary axles |
| Operating Weight | 34,004 kg (straight blade, Tier 4 Final/Stage V) |
| Max Travel Speed | 34.8 km/h forward / 39.7 km/h reverse (4th gear) |
| Blade Capacity | 5.0 m³ (straight blade, standard); 5.1–16.2 m³ across all blade options |
| Blade Width | 4,507 mm over end bits (straight blade, standard) |
| Brakes | Multi-disc wet, enclosed, 4-wheel service brakes; spring-applied hydraulic-released parking brake |
| ROPS / FOPS | Internal four-post ROPS/FOPS, sound-suppressed pressurized cab |
Dimensions
| Dimension | Value |
|---|---|
| Overall Length (with blade, straight blade) | 8,422 mm |
| Width (over guardrails) | 3,336 mm |
| Height (top of cab) | 4,100 mm |
| Wheelbase | 3,700 mm |
| Ground Clearance | 534 mm |
Typical Applications
- Surface mining site cleanup and stockpile management
- Coal handling and stockpiling
- Road and haul road maintenance
- Land reclamation and rehabilitation work
- Landfill and waste site operations
