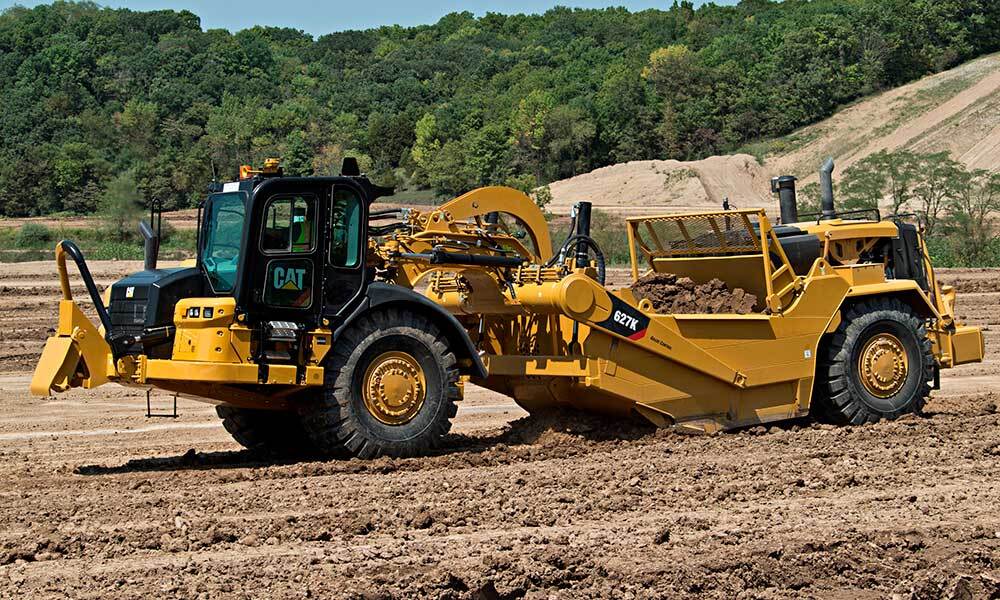

CAT 627 Open Bowl Scraper

Information

Additional information

Make	Caterpillar
Model	627
Class	Twin Powered
Weight	41 t

Equipment Overview

The CAT 627 is a twin-powered open bowl wheel tractor-scraper built for high-rolling-resistance and steep-grade work, sitting in the middle of Caterpillar’s open bowl range between the single-engine 621 and the larger 637. It has a heaped capacity of 18.4 cubic metres and an empty operating weight of around 41 tonnes, suited to bulk earthmoving on civil construction sites, road and highway subgrade work, dam and levee construction, and overburden stripping on mine sites.

A Cat C13 engine drives the tractor at 304 kW (407 hp), while a second Cat C9.3 engine drives the scraper at 216 kW (290 hp); both meet emission levels equivalent to U.S. EPA Tier 2/EU Stage II or U.S. EPA Tier 3/EU Stage III. Each unit has its own eight- and four-speed powershift transmission, so both the tractor and scraper axles are independently driven rather than the scraper trailing as dead weight.

Technical Specifications

Specification	Value
Engine (Tractor)	Cat C13
Engine (Scraper)	Cat C9.3
Power Output	304 kW (407 hp) tractor / 216 kW (290 hp) scraper
Max Torque	NA
Emission Standard	Equivalent to U.S. EPA Tier 2/EU Stage II or U.S. EPA Tier 3/EU Stage III (both engines)
Transmission	Tractor: 8-speed planetary power shift, APECS. Scraper: 4-speed torque converter drive, planetary powershift
Drive Type	Twin-powered; tractor and scraper axles independently driven
Operating Weight (Empty, non push-pull)	40,913 kg
Rated Load	26,127 kg
Scraper Capacity – Heaped	18.4 m³
Scraper Capacity – Struck	13 m³
Cutting Width	3.14 m
Maximum Depth of Cut	315 mm
Maximum Depth of Spread	540 mm
Fuel Tank Capacity	1,272 L

Dimensions

Dimension	Value
Length (Standard, Non Push-Pull)	14,015 mm
Width	3,585 mm
Height (Overall Shipping)	4,029 mm
Height (Top of Cab)	3,621 mm
Wheelbase	7,998 mm
180° Curb-to-Curb Turning Width	11.8 m
