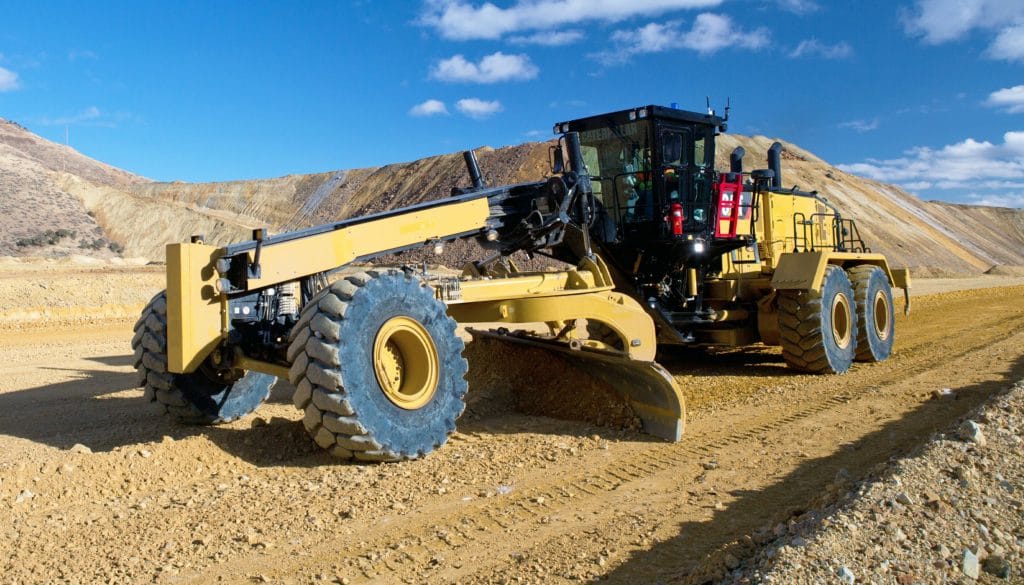

CAT 24 Motor Grader
Information
Additional information
| Make | |
|---|---|
| Model | 24, 24M |
| Weight | 75 t |
| Blade | 24 ft |
Equipment Overview
The Cat 24 is a mining-class motor grader built for maintaining haul roads on large mine sites, the biggest model in Caterpillar’s grader range. It runs a 7.3 m (24 ft) moldboard as standard, with an 8.5 m (28 ft) option, weighs around 74,985 kg typically equipped, and produces up to 399 kW (535 hp), suited to haul road upkeep alongside 150 to 250 tonne haul trucks.
Power comes from a Cat C27 engine, delivering 399 kW (535 hp) net and meeting Tier 4 Final/Stage IV emissions, with a Tier 2/Stage II equivalent option for less-regulated markets. A 21-inch planetary power shift transmission with 6 forward and 3 reverse gears sends power to the tandem rear axle, and a fluid service centre groups engine, transmission, hydraulic and coolant access at ground level to speed up servicing.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Cat C27 |
| Power Output | 399 kW (535 hp) |
| Emission Standard | Tier 4 Final / Stage IV, or Tier 2 / Stage II equivalent |
| Transmission | 21-inch planetary power shift, 6F/3R |
| Drive Type | Tandem rear-wheel drive |
| Operating Weight | 74,985 kg (165,314 lb) |
| Moldboard Width | 7.3 m (24 ft) standard, 8.5 m (28 ft) optional |
| Max Depth of Cut | 550 mm |
| Max Lift Above Ground | 410 mm |
Dimensions
| Dimension | Value |
|---|---|
| Length | approx. 14,200 mm |
| Width | approx. 4,270 mm |
| Height | approx. 4,420 mm |
Typical Applications
- Mine haul road construction and maintenance
- Large-scale overburden site preparation
- Haul road shoulder and slope shaping
- Stockpile area levelling
- Table drain and ditch maintenance on mine sites
