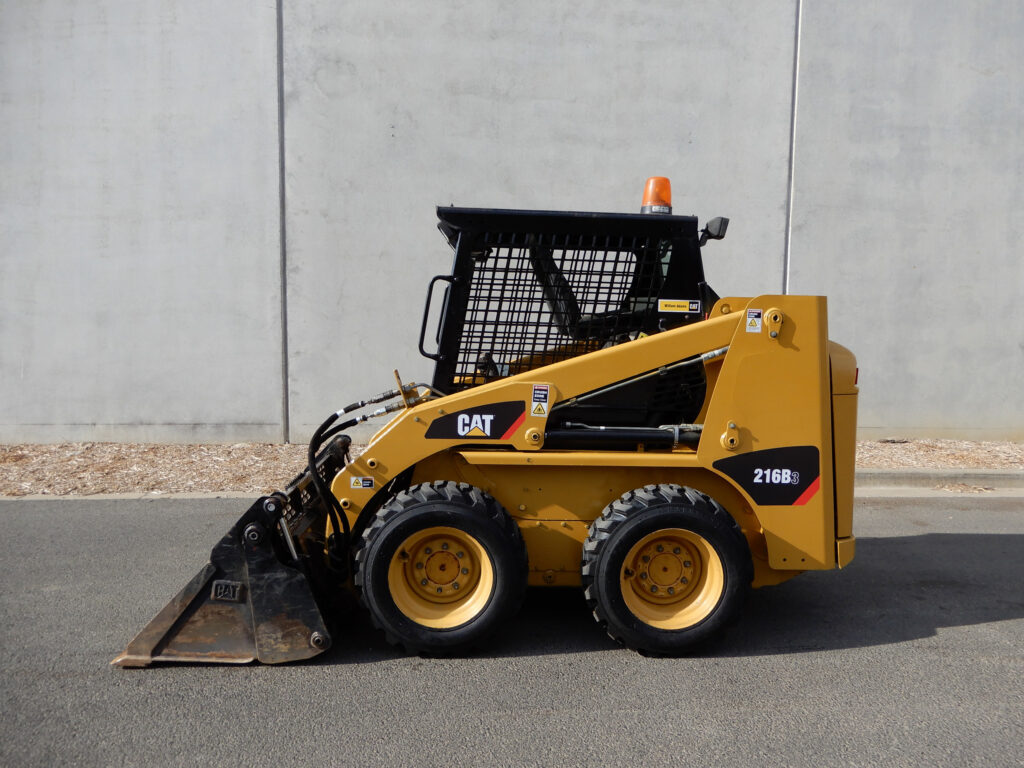

CAT 216 Skid Steer Loader
Information
Additional information
| Make | |
|---|---|
| Model | 216, 216B3 |
| Weight | 2.6 t |
| Capacity | 0.6 t |
| Power | 52 hp |
Equipment Overview
The Cat 216 is a compact skid steer loader built for versatility, flotation, traction, and stability across a wide range of terrains, positioned at the entry point of Caterpillar’s skid steer loader range. It delivers 52 hp and a 635 kg rated operating capacity, suited to general construction and landscaping tasks needing a compact, manoeuvrable machine.
Power comes from a Cat C2.2 diesel engine driving a single-speed hydrostatic transmission through a radial-lift loader boom. A standard 56.8 L/min hydraulic system at 214 bar powers a wide range of Cat and aftermarket attachments, and the compact footprint gives strong manoeuvrability in tight jobsite spaces.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Cat C2.2, 4-cylinder diesel, 2.2 L |
| Power Output | 52 hp |
| Max Torque | NA |
| Emission Standard | NA |
| Transmission | Single-speed hydrostatic |
| Drive Type | 4-wheel skid steer |
| Operating Weight | 2,589 kg |
| Rated Operating Capacity (50%) | 635 kg |
| Tipping Load | 1,270 kg |
| Auxiliary Hydraulic Flow | 56.8 L/min (214 bar) |
| Max Travel Speed | 12.7 km/h |
Dimensions
| Dimension | Value |
|---|---|
| Length | 3,230 mm |
| Width | 1,520 mm |
| Height | 1,950 mm |
| Wheelbase | NA |
| Turning Radius | NA |
Typical Applications
- General construction and landscaping
- Material handling in tight spaces
- Attachment-driven property maintenance
- Light-duty digging and loading
